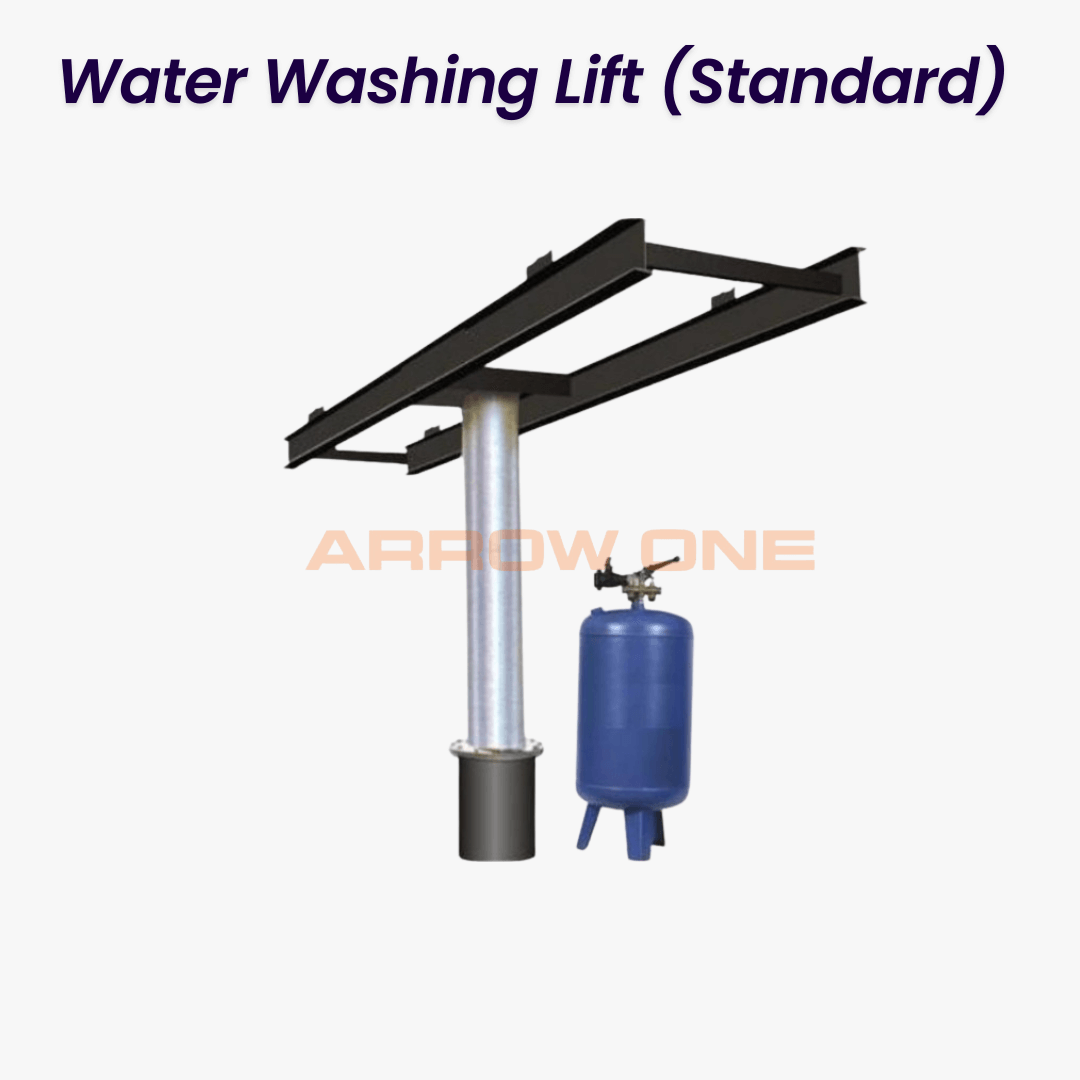

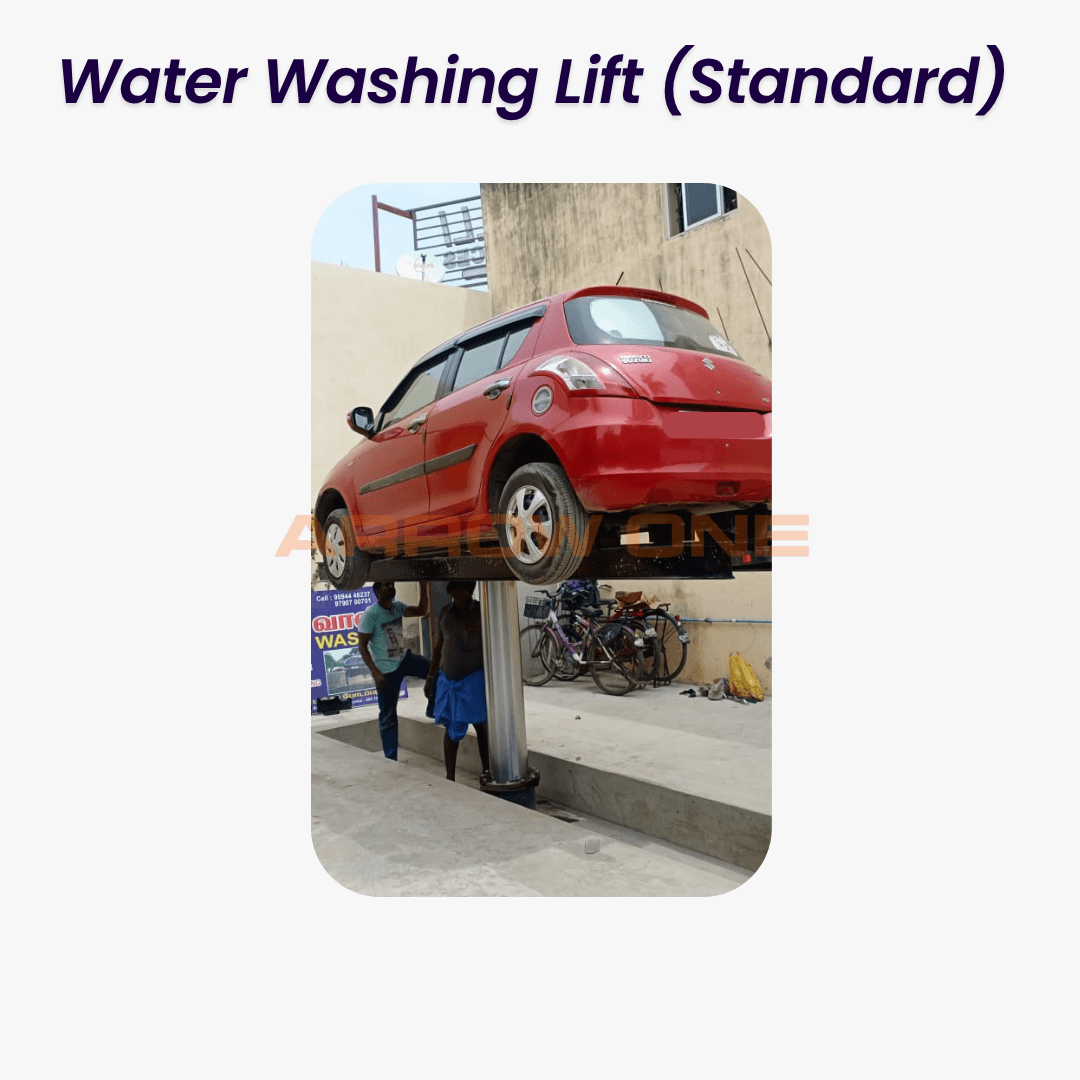

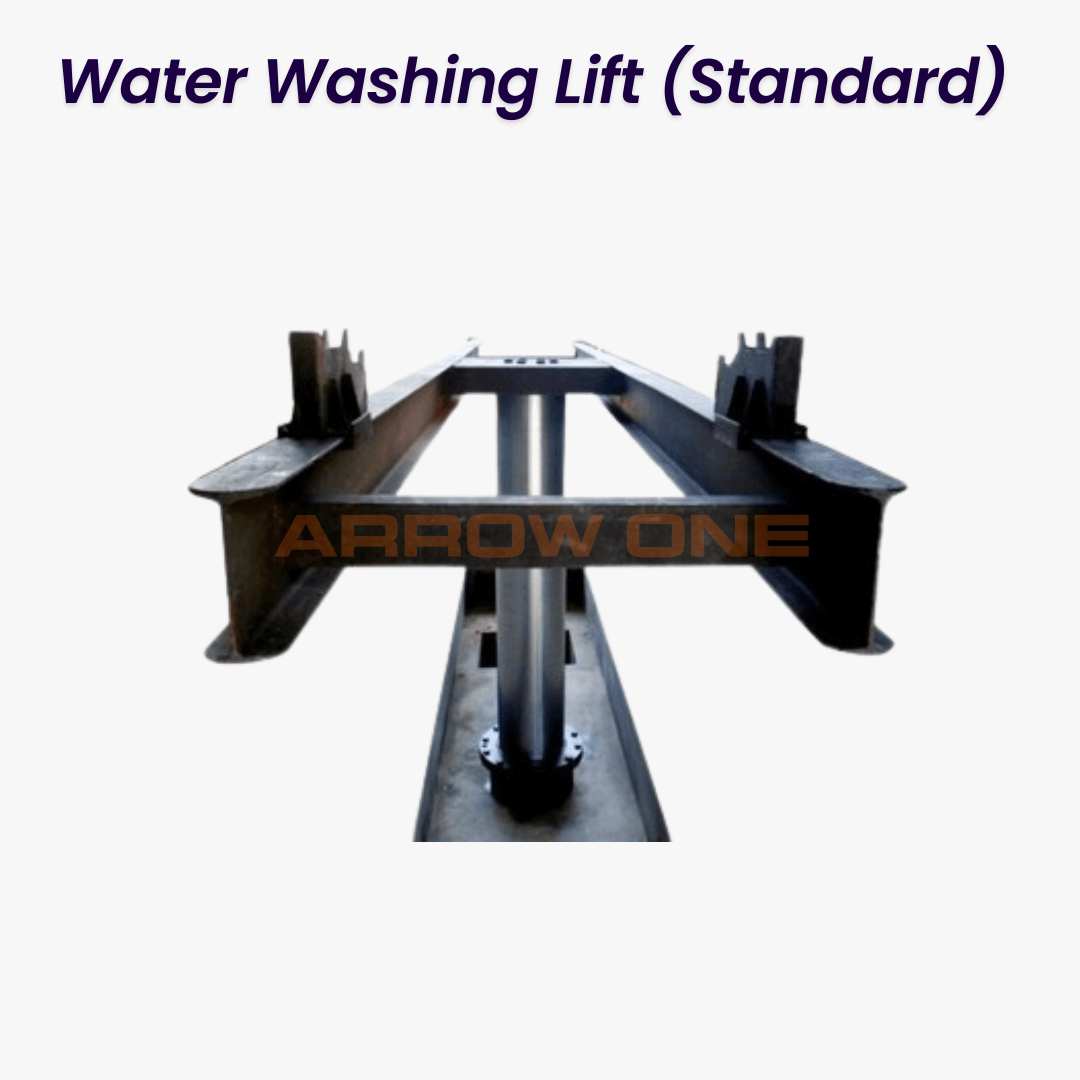

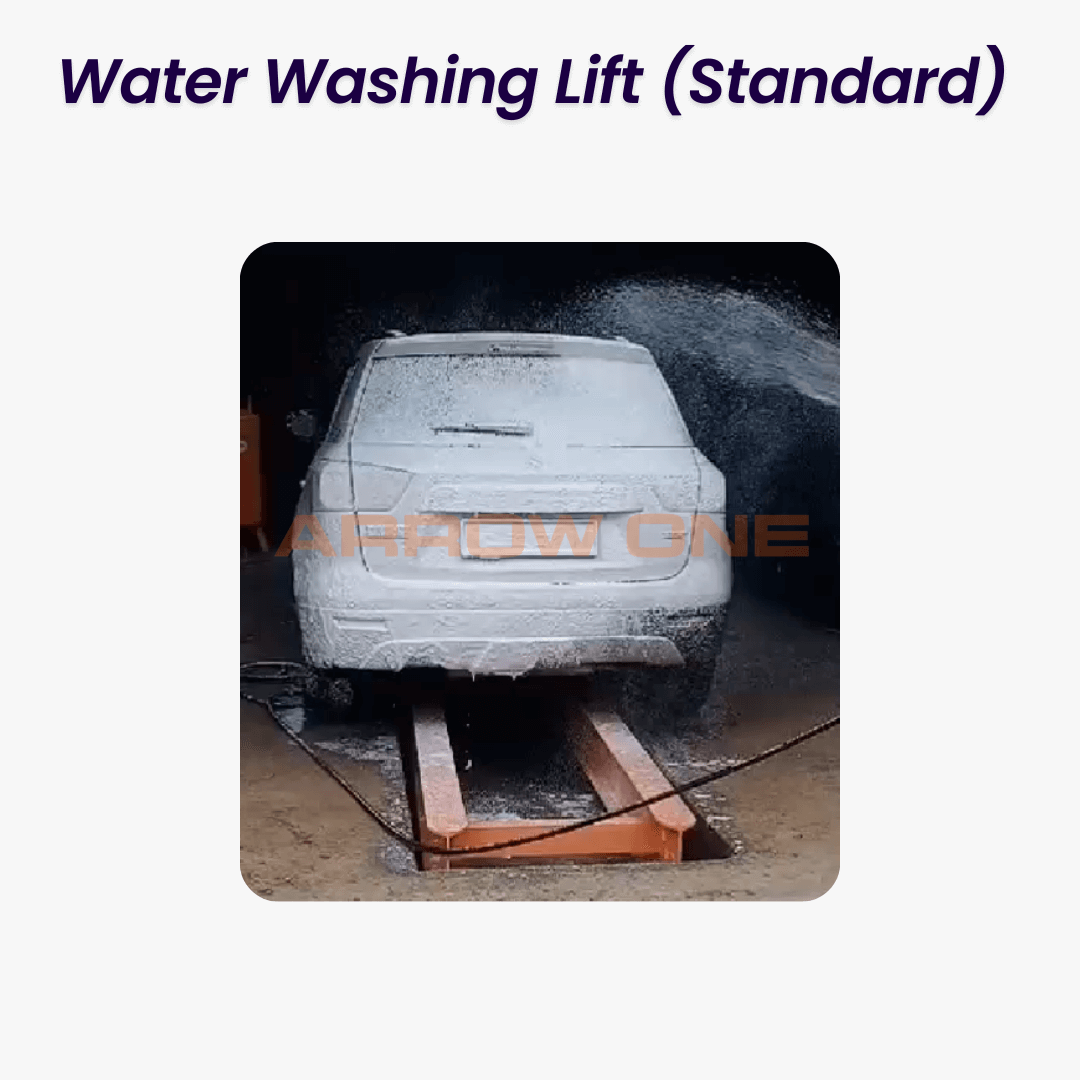

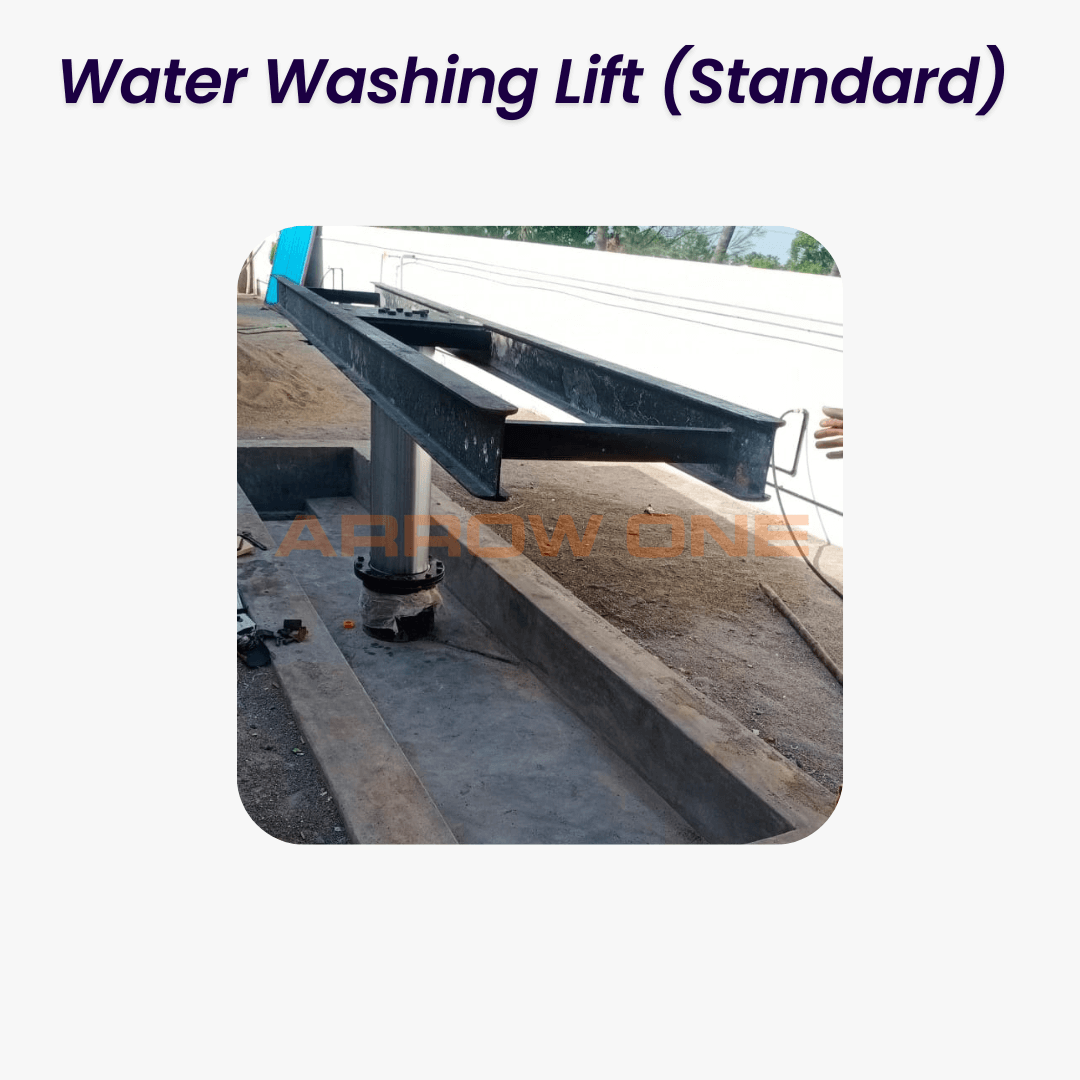

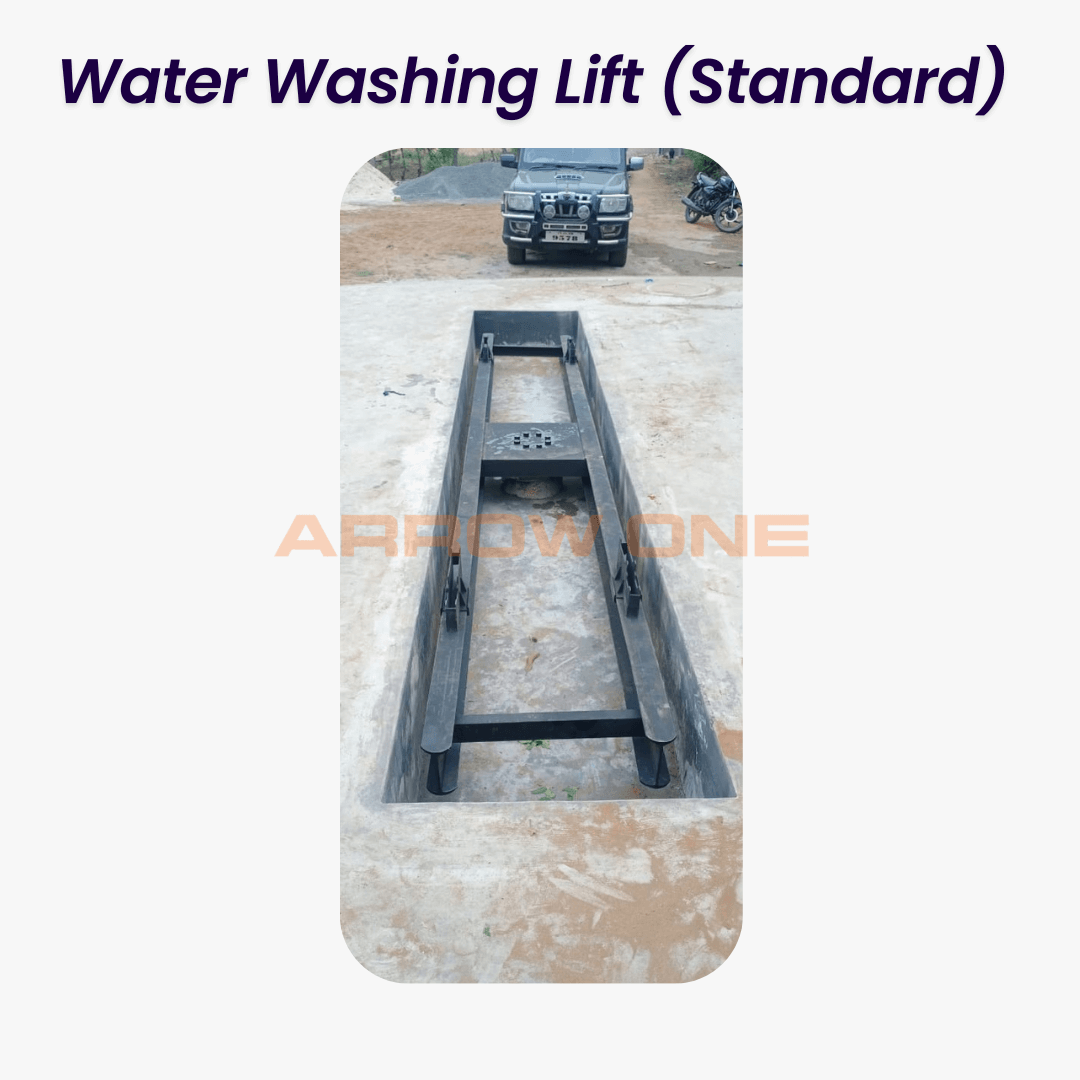

Water Washing Lift (Standard)
Water Washing Lift (Standard)
Note: Completely customisable as per customer requirement.
For best price connect with us
Product Features :
- Supports both indoor & outdoor installation
- Wiper rings to prevent water and dirt particles from entering the hoist cylinder during raising, servicing, and lowering.
- Gland rings in the plungers to enhance performance.
- High-grade steel plungers, manufactured to close tolerances, with hard chrome plating for high wear resistance.
- Lifting and washing of passenger, light, and heavy commercial vehicles.
- Detailing (underbody / underside) of passenger & commercial vehicles
- Designs to prevent ingress of water/dirt (wiper rings) into the hoist cylinder.
- Hard chrome plating on high-grade steel plungers for wear resistance.
Product Specification Data:
| Capacity (tons) | 4 |
| No. of posts | 1 |
| Plunger diameter mm | 270 |
| Operating pressure Kg/cm² | 9 to 12 |
| Lifting height mm | 1500 |
| Ramp length | 4500 |
| Lifting height mm | 1500 |
| Ramp width mm | 700 |
| Oil fill capacity ltrs | 210 |
Product Specification Data:
| Capacity (tons) | 8 | 16 |
| No. of posts | 1 | 2 |
| Plunger diameter mm | 320 | 320 |
| Operating pressure Kg/cm² | 12 to 16 | 12 to 14 |
| Lifting height mm | 1525 | 1525 |
| Ramp length Front mm | 5800 | 5800 |
| Ramp length Rear mm | 7620 | |
| Lifting height mm | 1500 | 1800 |
| Ramp width mm | 820 | 820 |
| Oil fill capacity ltrs | 260 | 520 |
