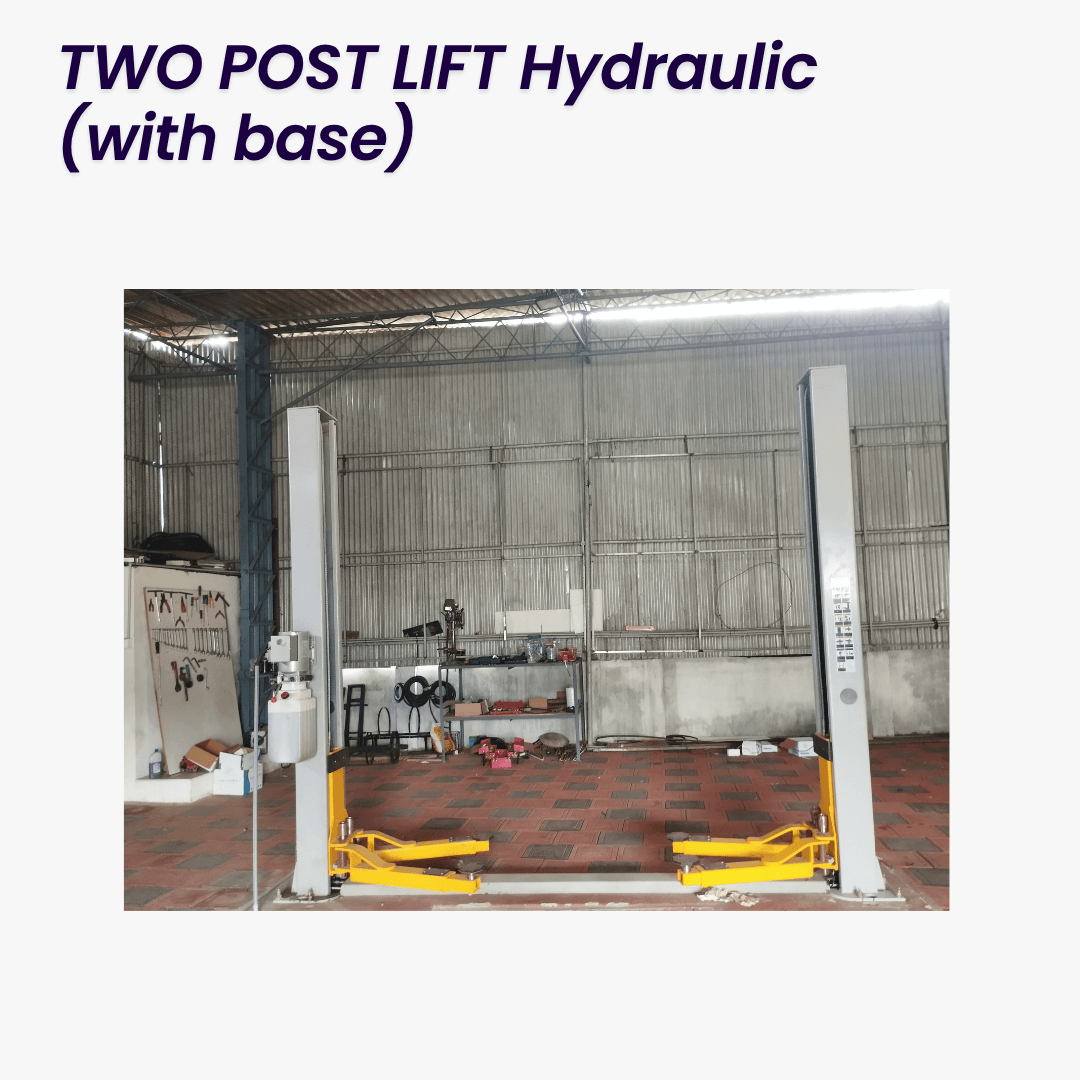

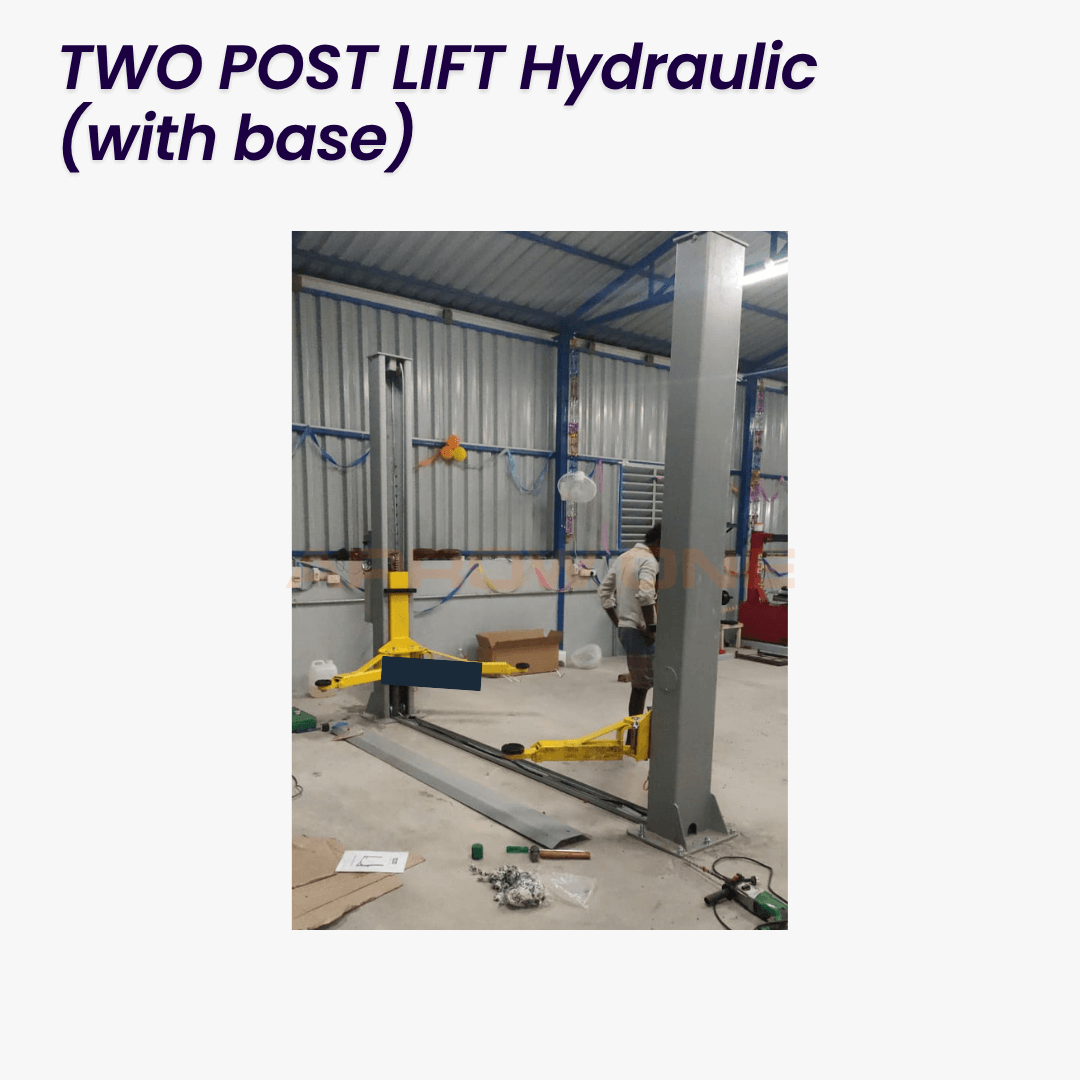

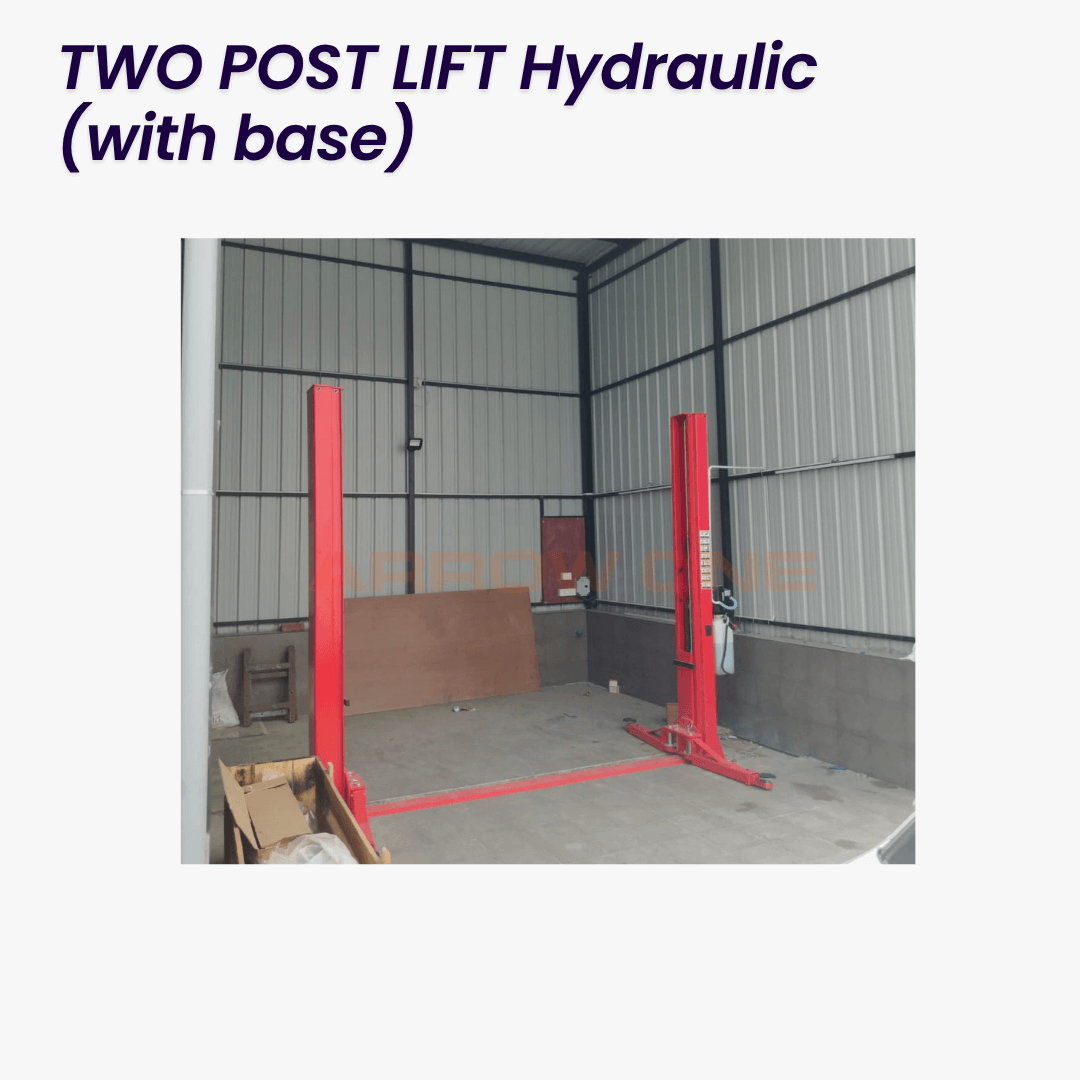

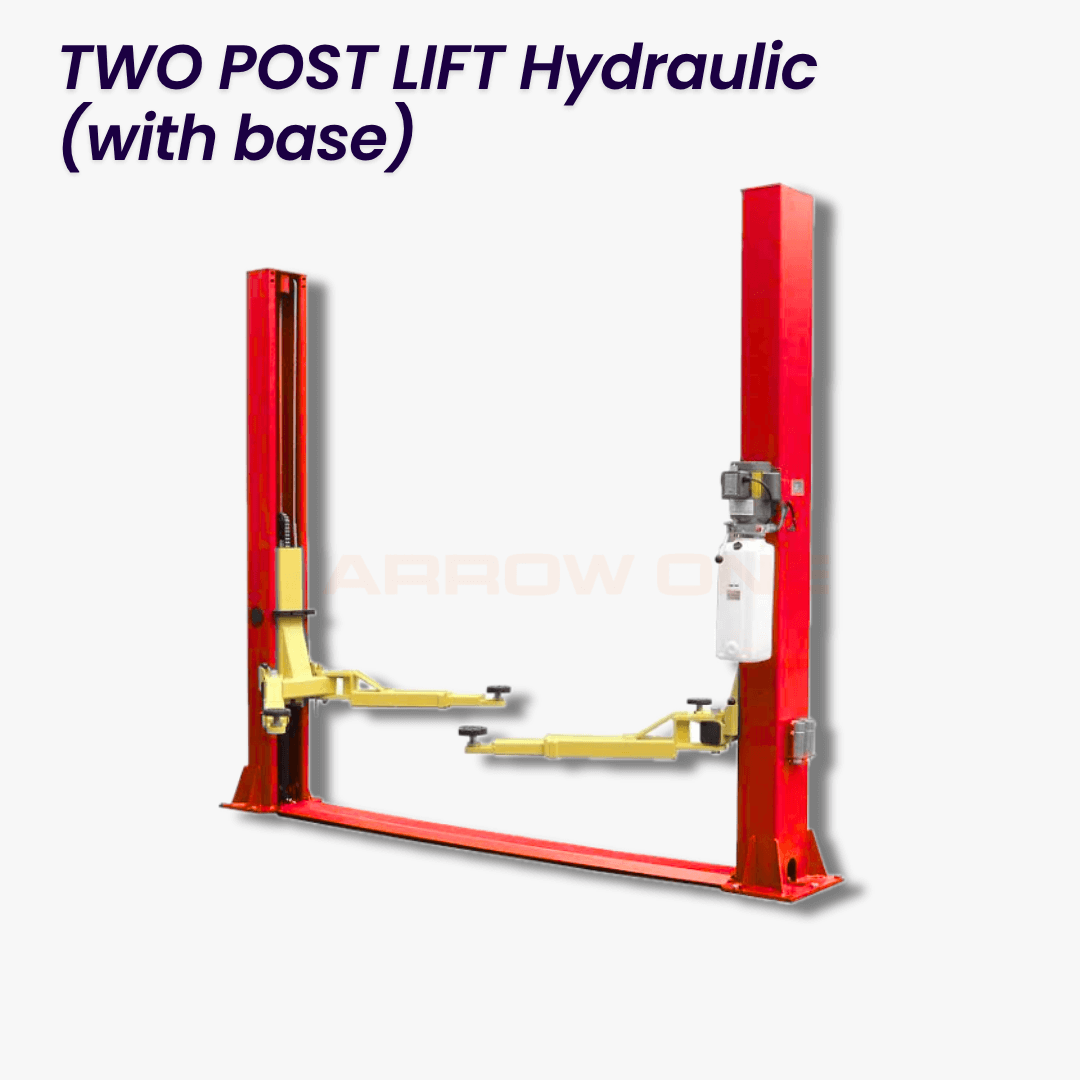

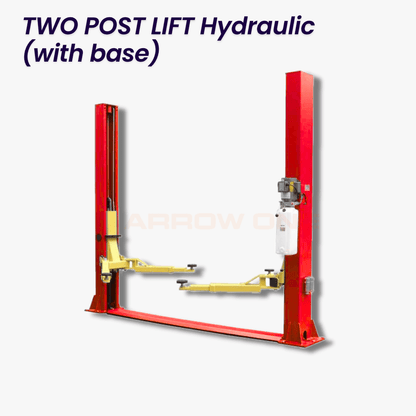

Two Post Lift Hydraulic (with base)
Two Post Lift Hydraulic (with base)
Note: Completely customisable as per customer requirement.
Product Features :
- Powerhoch Two post Clear floor Lifts are completely electro-hydraulic and are made according to accurate structural calculation, with a capacity of 4 tons.
- High-Pressure cylinders in each column provide maximum lifting force and smooth operation .
- Equipped with a safety valve to prevent overloading and in case of Hydraulic Pipe fracture.
- Mechanical safety catches with automatic engagement.
- Automatic Arm Restrain.
- Perfect synchronization between cylinders regardless of load distribution.
- Self controlled lowering speed.
- Special overhead padded limit switch to prevent damaging vehicles being raised too high.
Product Specification Data :
| Type | Two Post |
| Technology | Electro Hydraulic |
| Lifting Weight | 4.0 Ton |
| Lifting Height | 1800 mm |
| Lifting Time | 50 sec. |
| Overall Height | 2826 mm |
| Overall Length | 3420 mm |
| Overall Width | NA |
| Inside Columns | 2400 mm |
| Lowest Height | 125 mm |
| Motor | 3 HP |
| Power | 415 V-3 PH-50 Hz |
