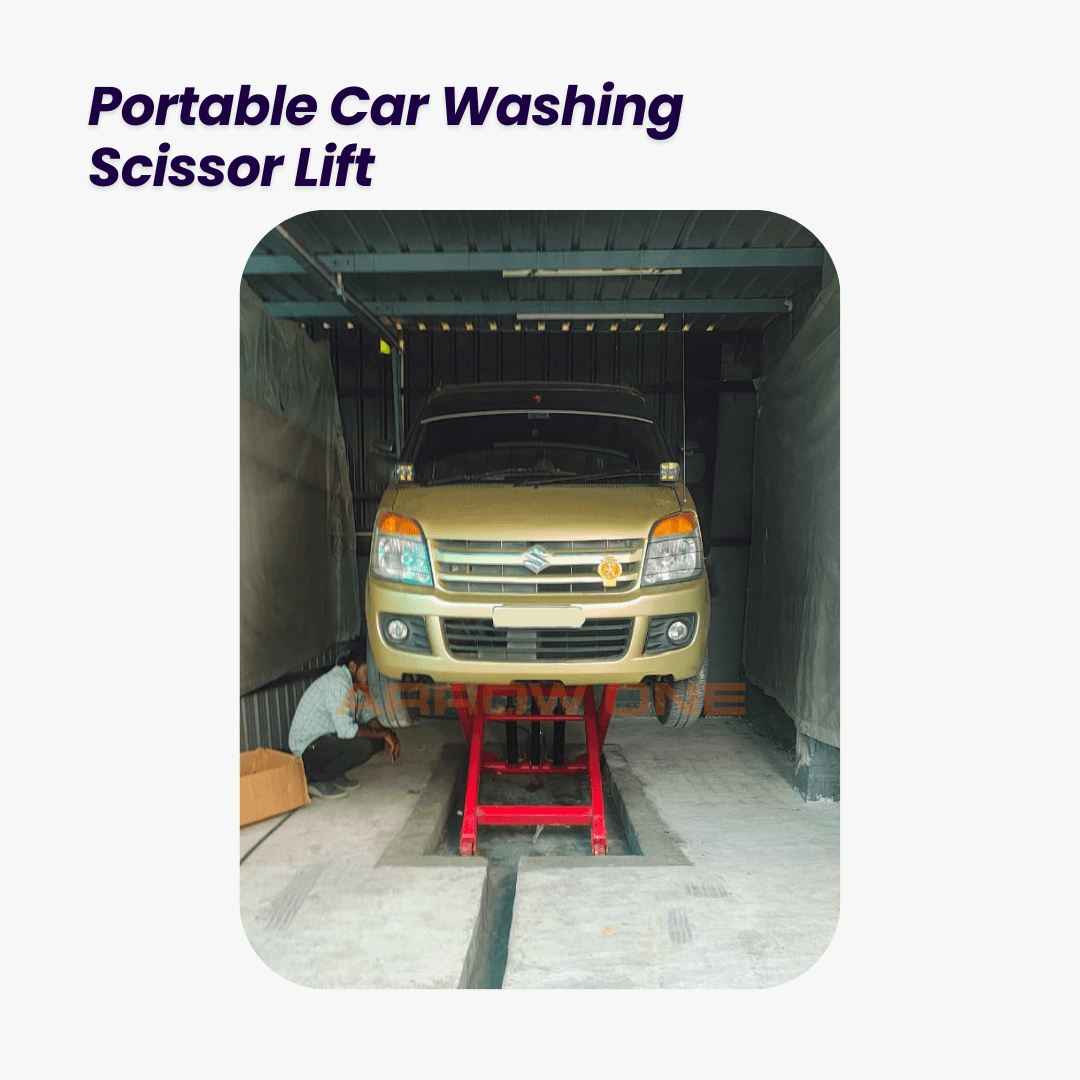

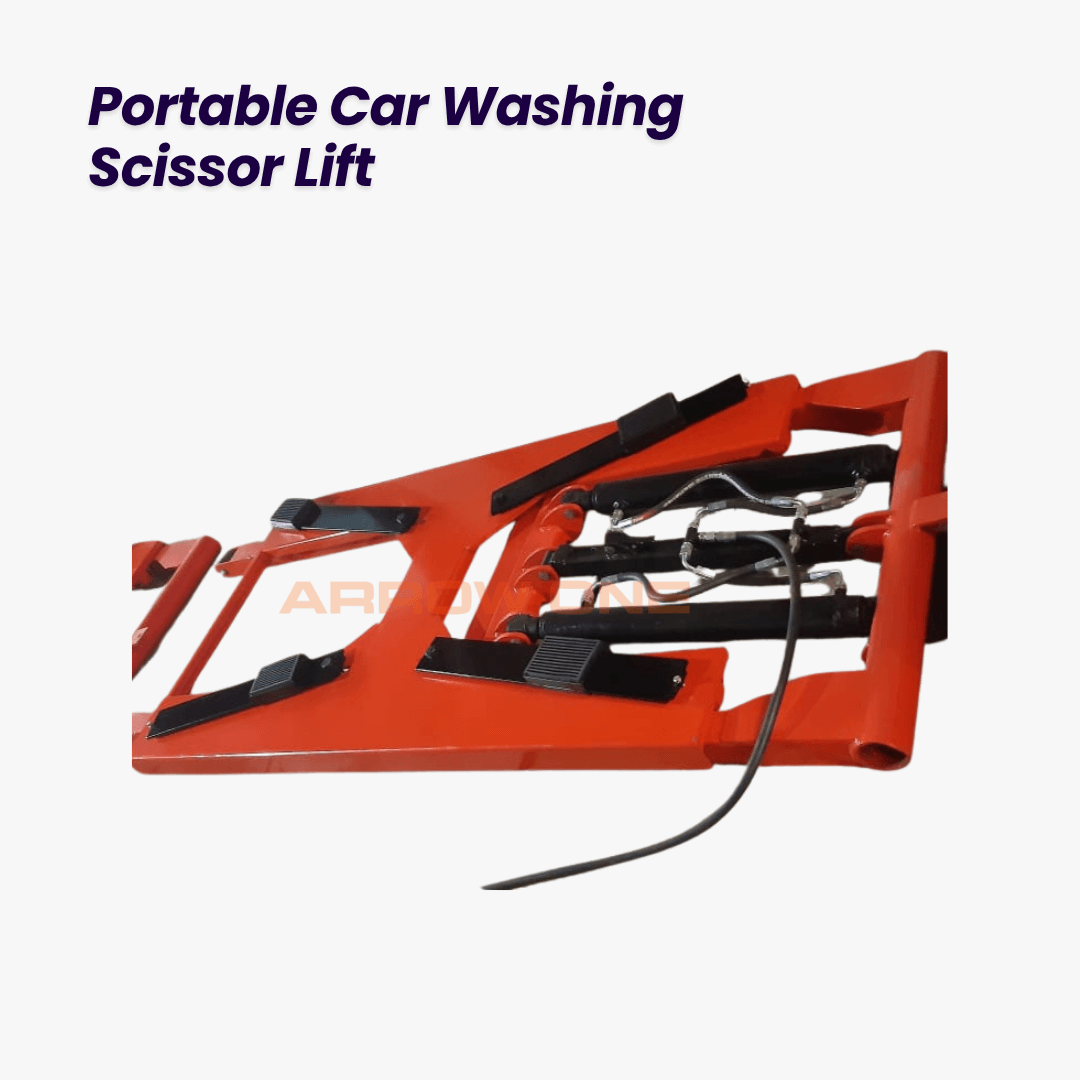

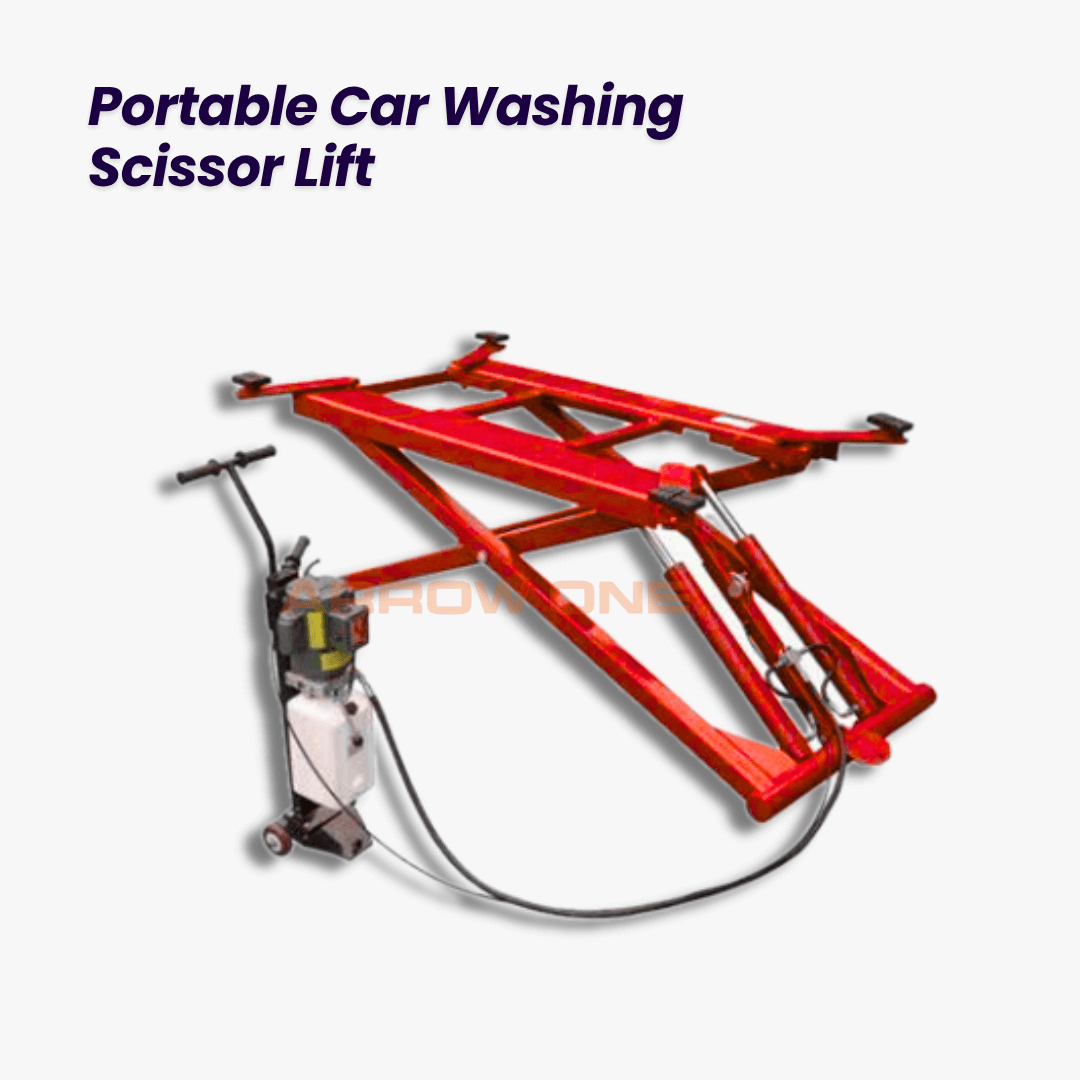

Portable Car Washing Scissor Lift
Portable Car Washing Scissor Lift
Note: Completely customisable as per customer requirement.
For best price connect with us
Product Features:
- Hydraulic Operation : Smooth and stable lifting powered by a heavy-duty hydraulic system for consistent performance.
- Ideal for Car Wash Centers : Enables complete underbody cleaning without obstructions.
- Easy Installation & Operation : Simple hydraulic mechanism with plug-and-play installation options.
- High Load Capacity : Designed to lift vehicles up to 4–5 tons, suitable for cars, SUVs, and light commercial vehicles.
- Rust & Water Resistant Construction : Specially treated steel and anti-corrosion coating ensure long life in wet environments.
- Flush-Mounted Design : Can be installed in-ground for a level surface, providing a neat and space-saving setup.
- Precision Control : Easy-to-use control panel allows accurate lifting and lowering.
- Enhanced Safety Lock Mechanism : Multi-position safety locks prevent accidental lowering during operation.
- Low Maintenance : Minimal moving parts and durable hydraulic components reduce service requirements.
- Customizable Platform Size : Tailored to different vehicle lengths and workshop requirements.
- Space-Efficient Design : Flush-fit in the ground, keeping the workspace clean and open.
Product Specification Data :
| Parameter | Specification |
|---|---|
| Capacity (maximum load) | 4 Ton – 5 Ton |
| Running Mode | Moving (mobile/relocatable) |
| Lift Drive | Hydraulic |
| Working / Lifting Height | Up to ~1.5 m (≈ 5 feet) or more depending on model |
| Platform Length | Approx. 3,000 mm (≅ 10 feet) – typical for 5 Ton units |
| Platform Width | Approx. 1,500 mm – 2,000 mm depending on vehicle size |
| Pit Depth | Around ~850 mm – 900 mm (for flush-mounted/pit version) |
| Pit Width | Roughly ~1,000 mm – 1,100 mm |
| Pit Length | Roughly ~4,300 mm – 4,500 mm |
| Installation Type | Surface-mounted or pit-mounted |
| Safety Locks / Locking Mechanism | Multi-position mechanical locks |
| Control System | Push-button + emergency stop |
| Finish / Construction | Heavy steel weldment, anti-corrosion paint or coating |
| Usage / Application | Car washes, vehicle service centres, general garages |
| Power Supply (typical) | 3-phase electric motor (varies with region) |
