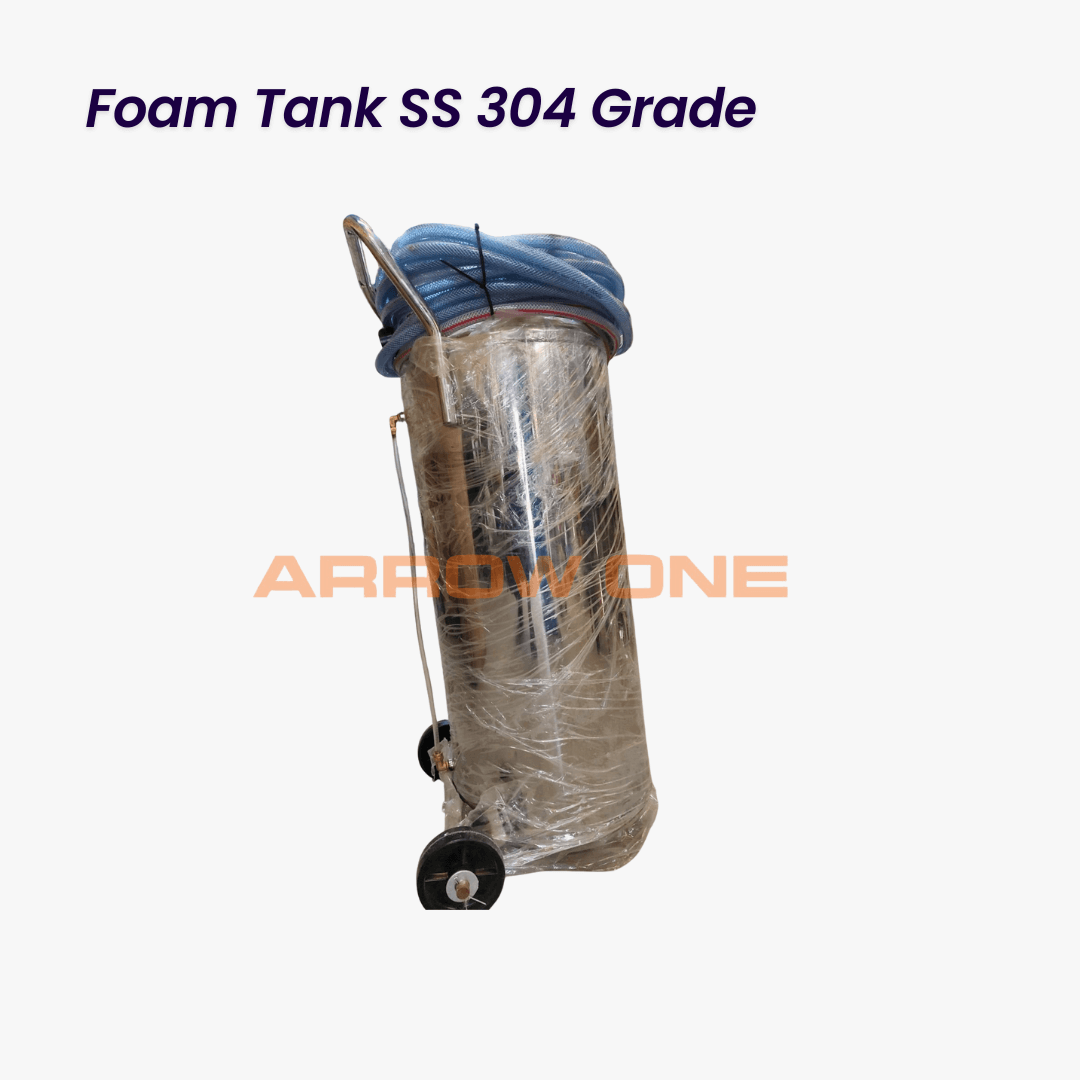

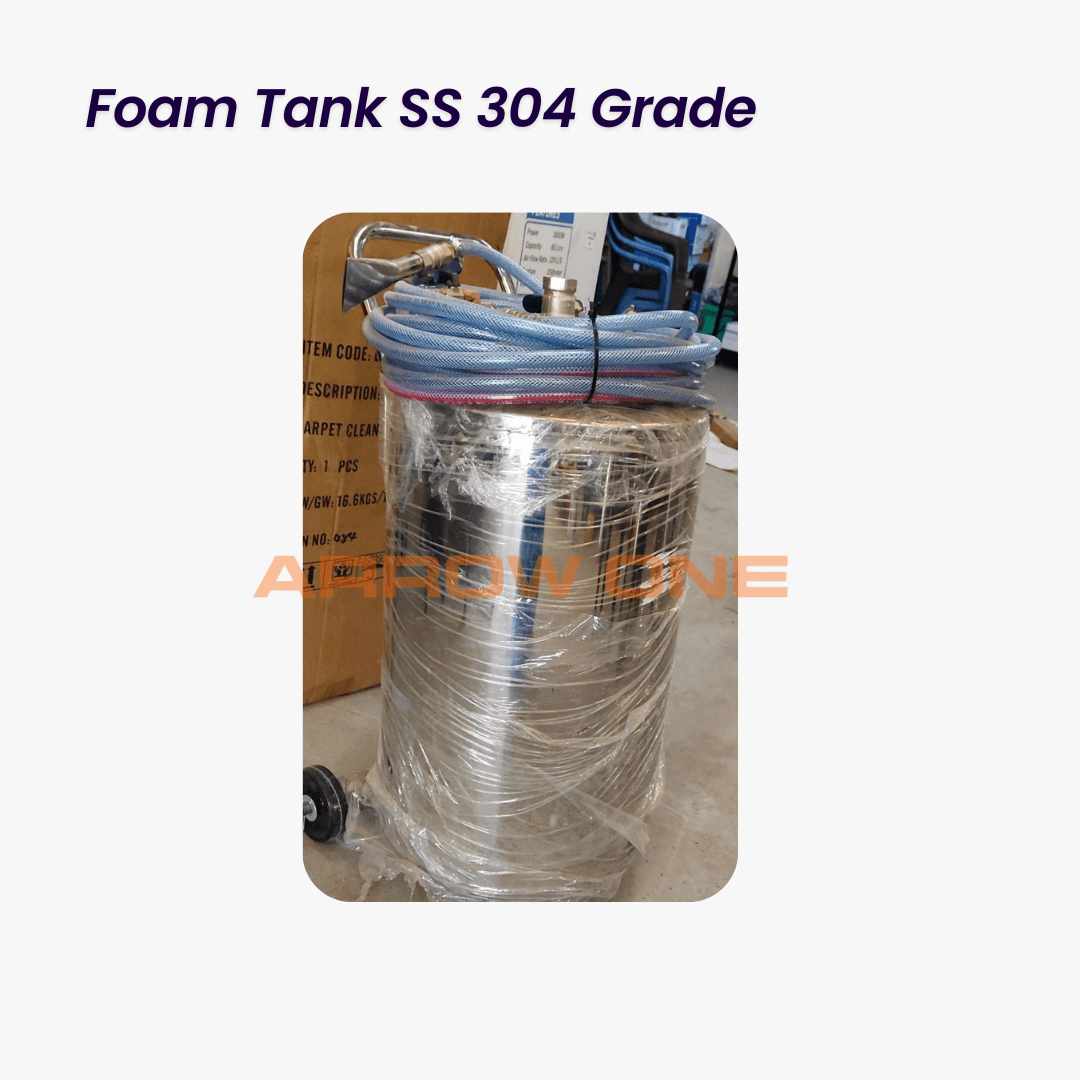

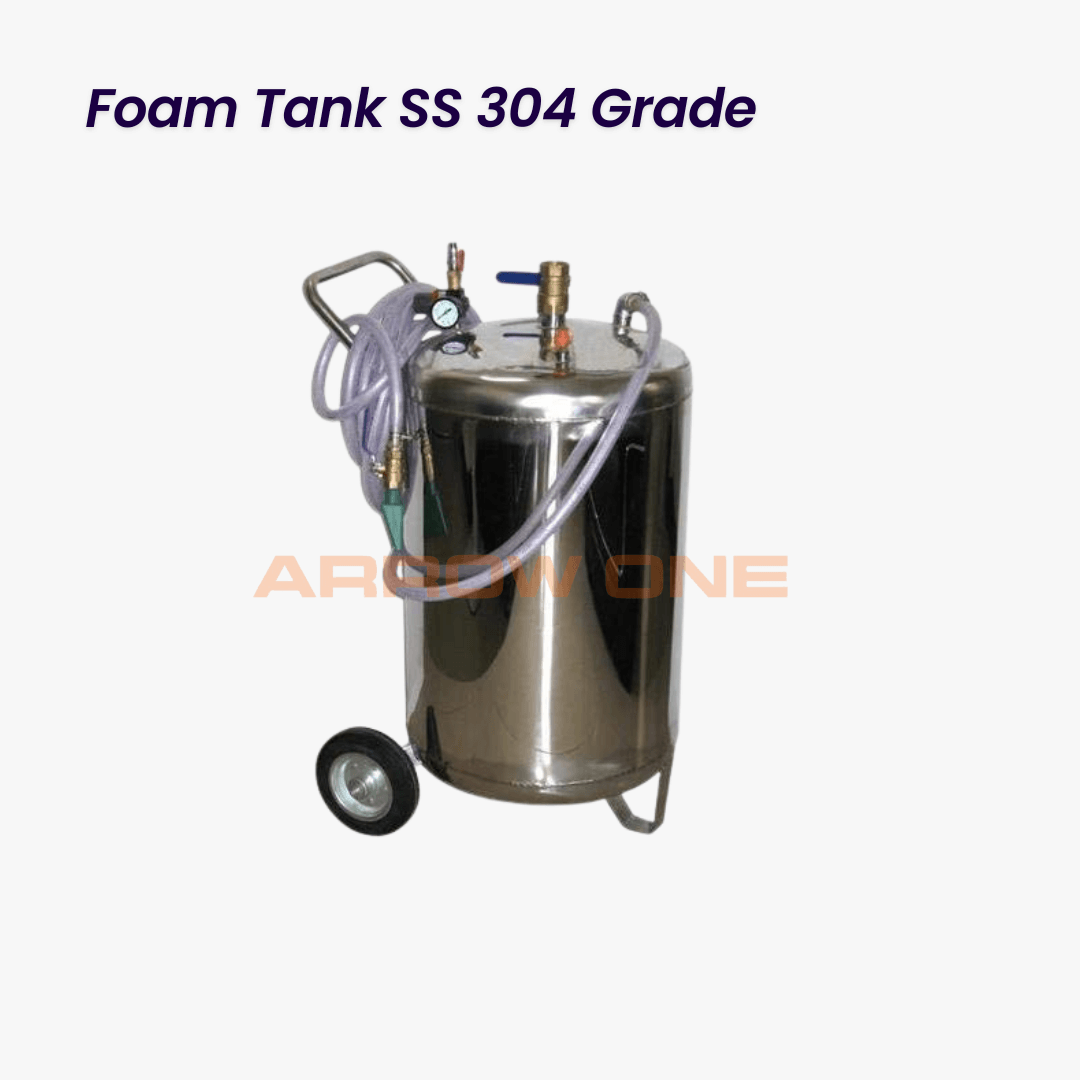

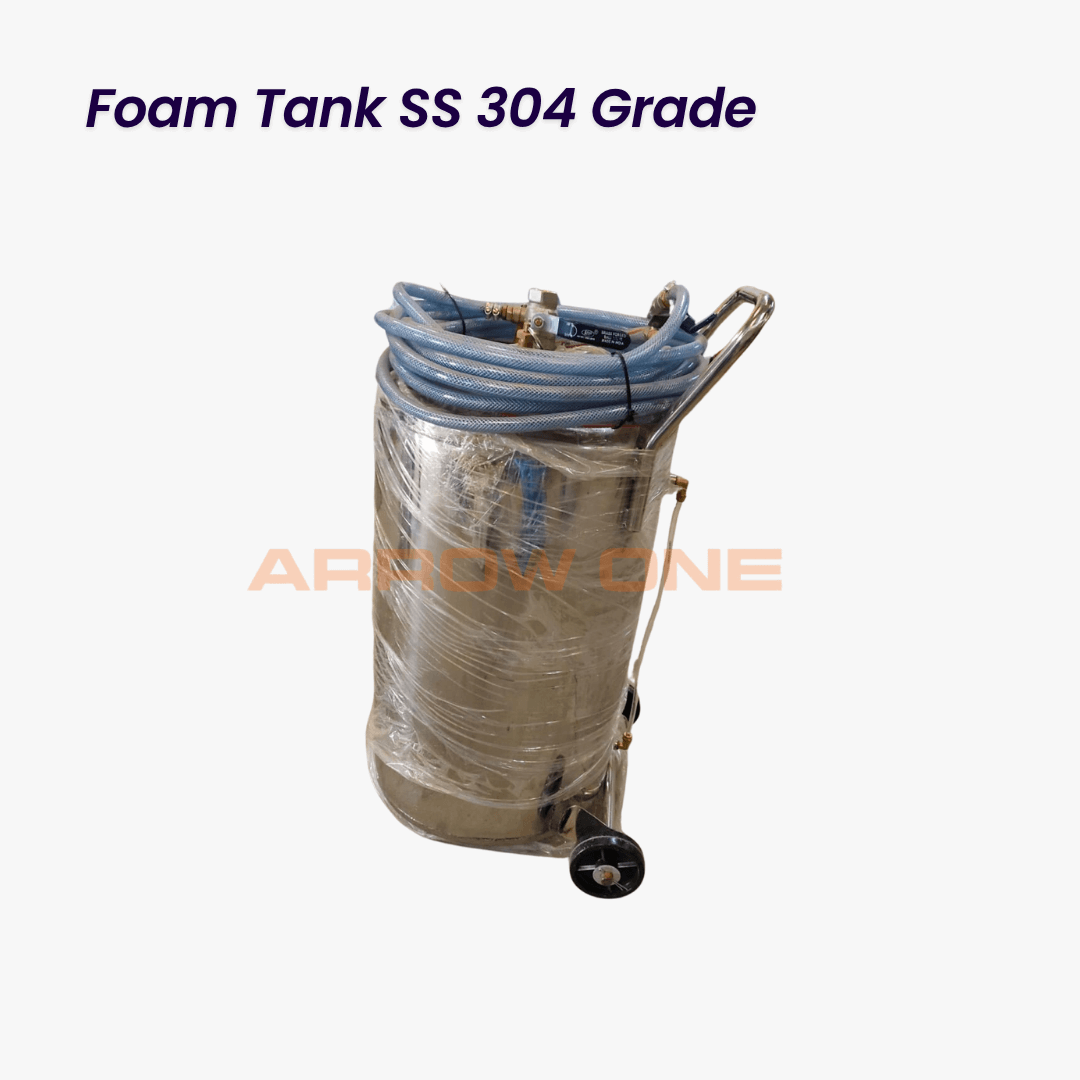

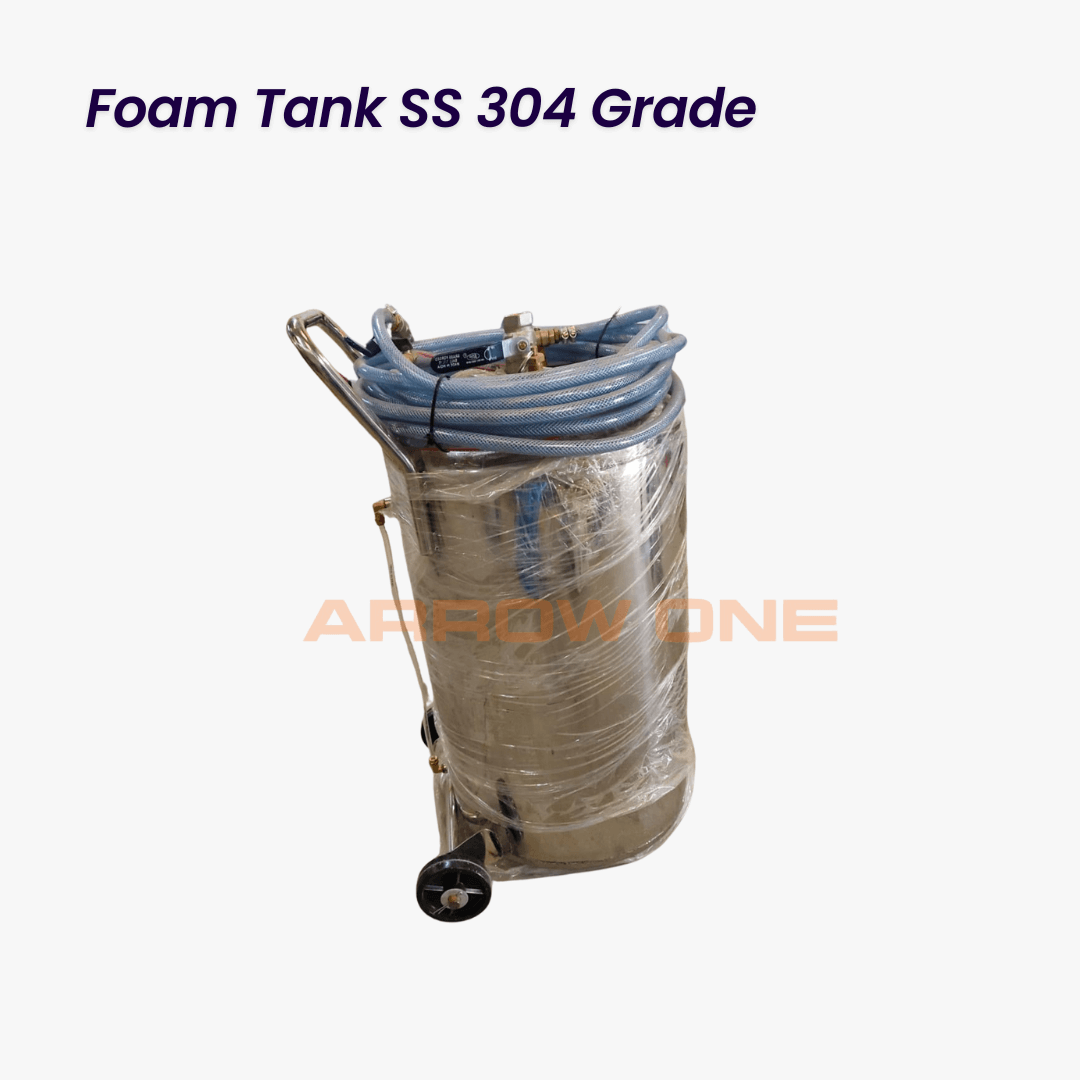

Foam Tank with Foam‑Washing Nozzle (Heavy Duty 304 Stainless Steel)

Capacity 50 Ltrs 70 Ltrs

With Pressure 4 to 6 Bar

Note: Completely customisable as per customer requirement.

Product Features:

Tanks have Capacity of 50L to 70L of Foam Storage.
Have Ability To Foam Your 20 to 25 Cars In A Day.
Air Compressor (2-3 bar) Needed To Get This Tank Work.
Special Trigger Gun To Foam Your Cars Easily.
Makes Your Garage Look Professional And Standard
Excellent corrosion resistance compared to mild steel / painted tanks – especially useful when storing foam concentrates or aggressive chemicals.
Longer service life, lower maintenance (no rusting, less need for repainting).
Hygienic & easy to clean (important for vehicle wash foam systems where cleanliness counts).
Attractive finish (natural stainless steel look or can be painted/coloured as required).
Flexibility: Easy to fabricate for custom sizes, wall/floor installations, mountings.

Parameter	Specification
Material of Construction	Grade SS 304 stainless steel (body, cover, internal parts)
Capacity / Volume	50 to 70 Liters
Sheet Thickness	Body: ~ 2.0-3.2 mm (typical for smaller tanks)
Operating Pressure / Working Pressure	4 bar to 6 bar in one application.
Connections / Inlet & Outlet	Inlet for foam concentrate fill, outlet to proportioner / pump suction. Example: filling orifice Ø150 mm with removable strainer.
Drain / Sludge Trap	Bottom drain / sludge trap with e.g., Ø25 mm or Ø50 mm drain valve.
Finish / Surface	Natural stainless finish (polished or brushed) or optionally painted (e.g., fire-red) depending on application. Example: internal surface SS304
Accessories	Removable strainer mesh on fill opening; venting; level gauge/ sight glass if required; lifting lugs if larger size; safety relief valve if pressure-rated.
Application / Usage	Designed for foam concentrate storage or foam proportioning systems (car wash foam, fire‐fighting foam concentrate, etc).
