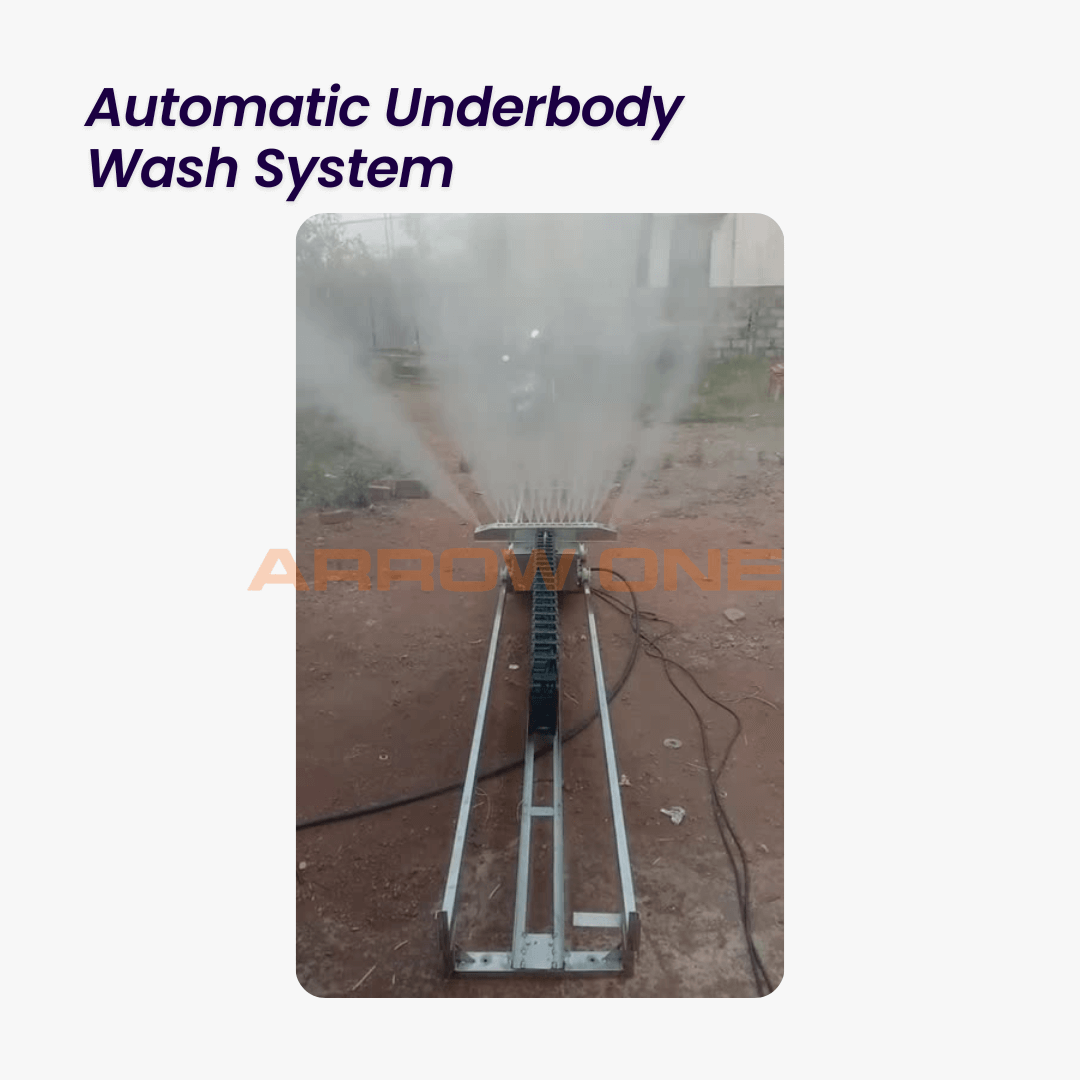

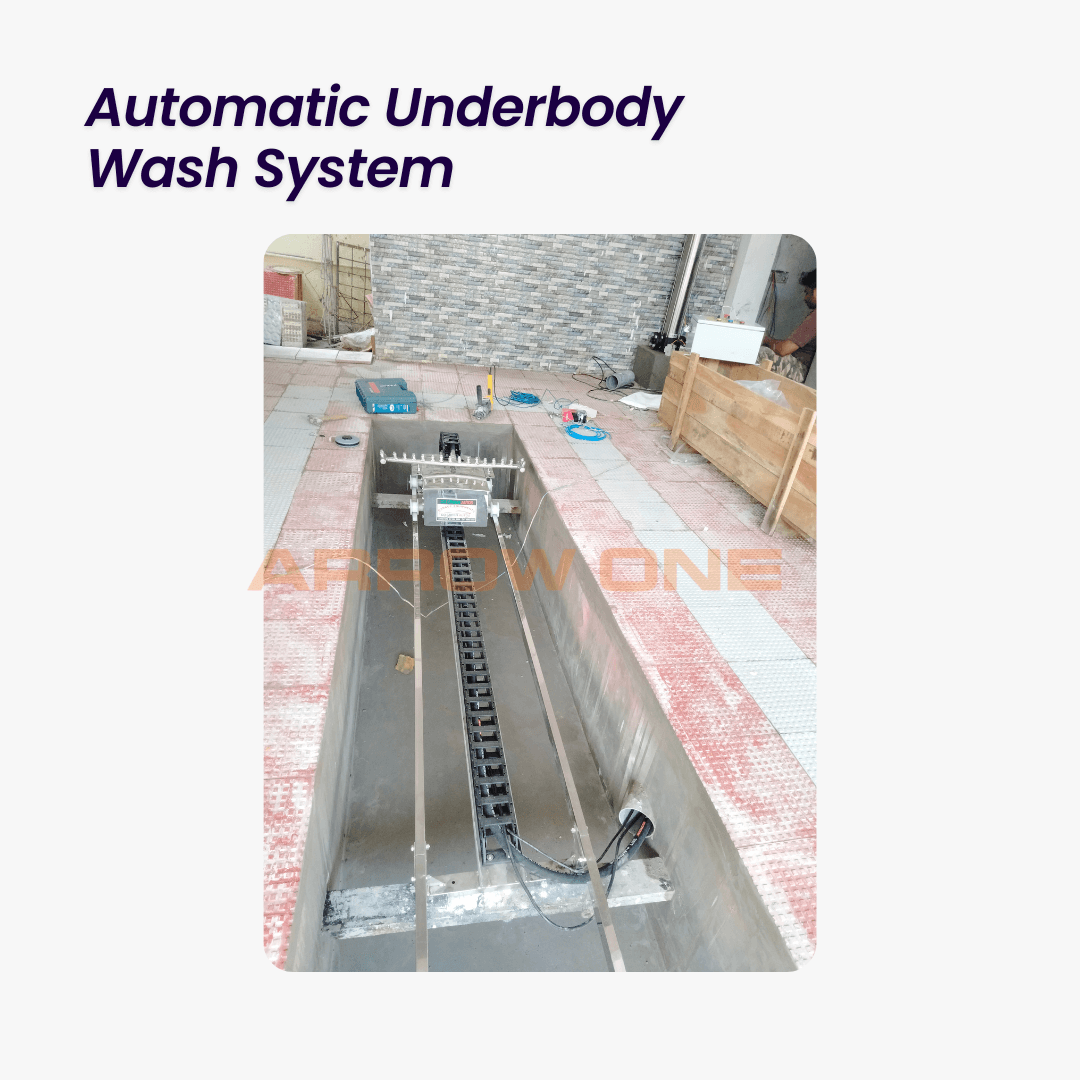

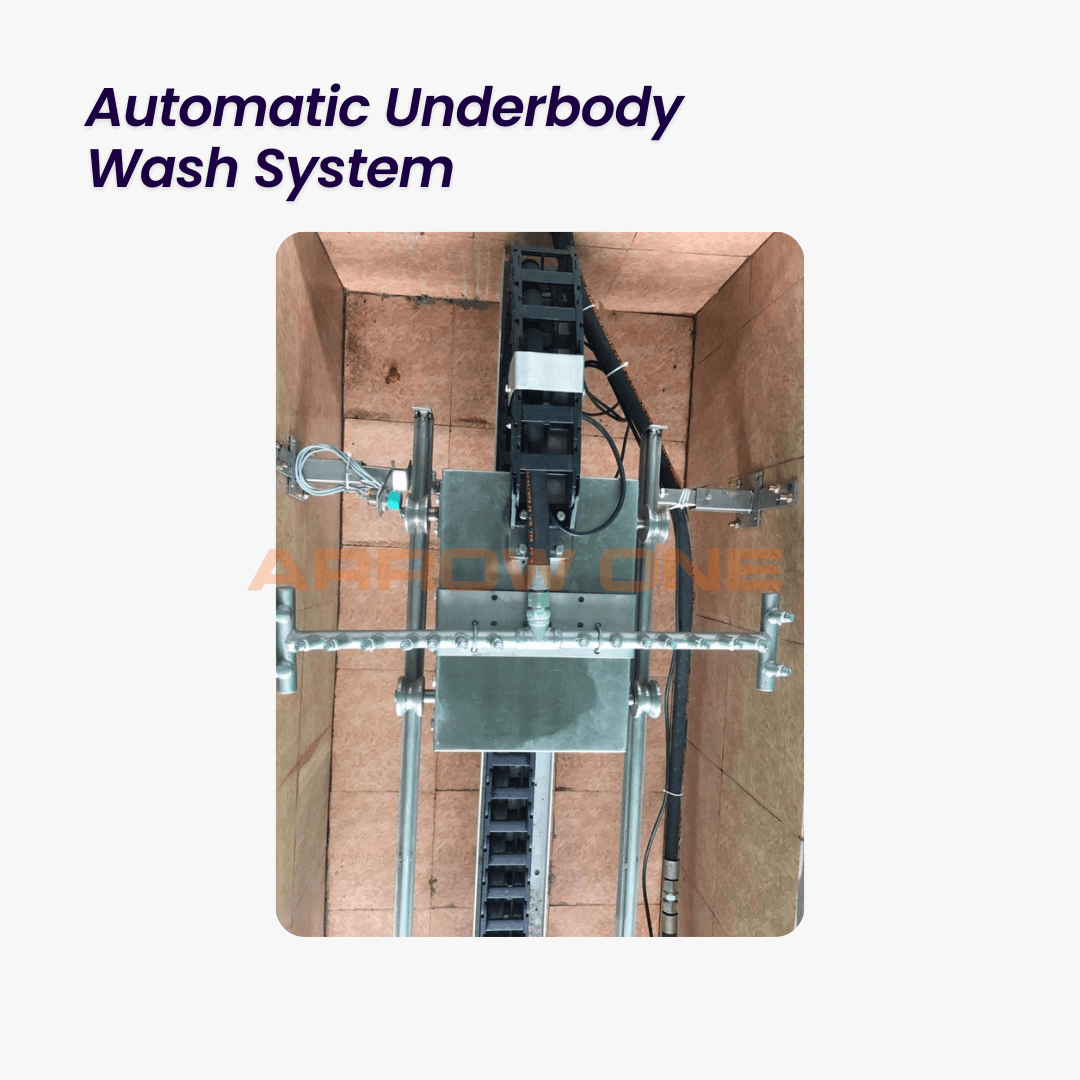

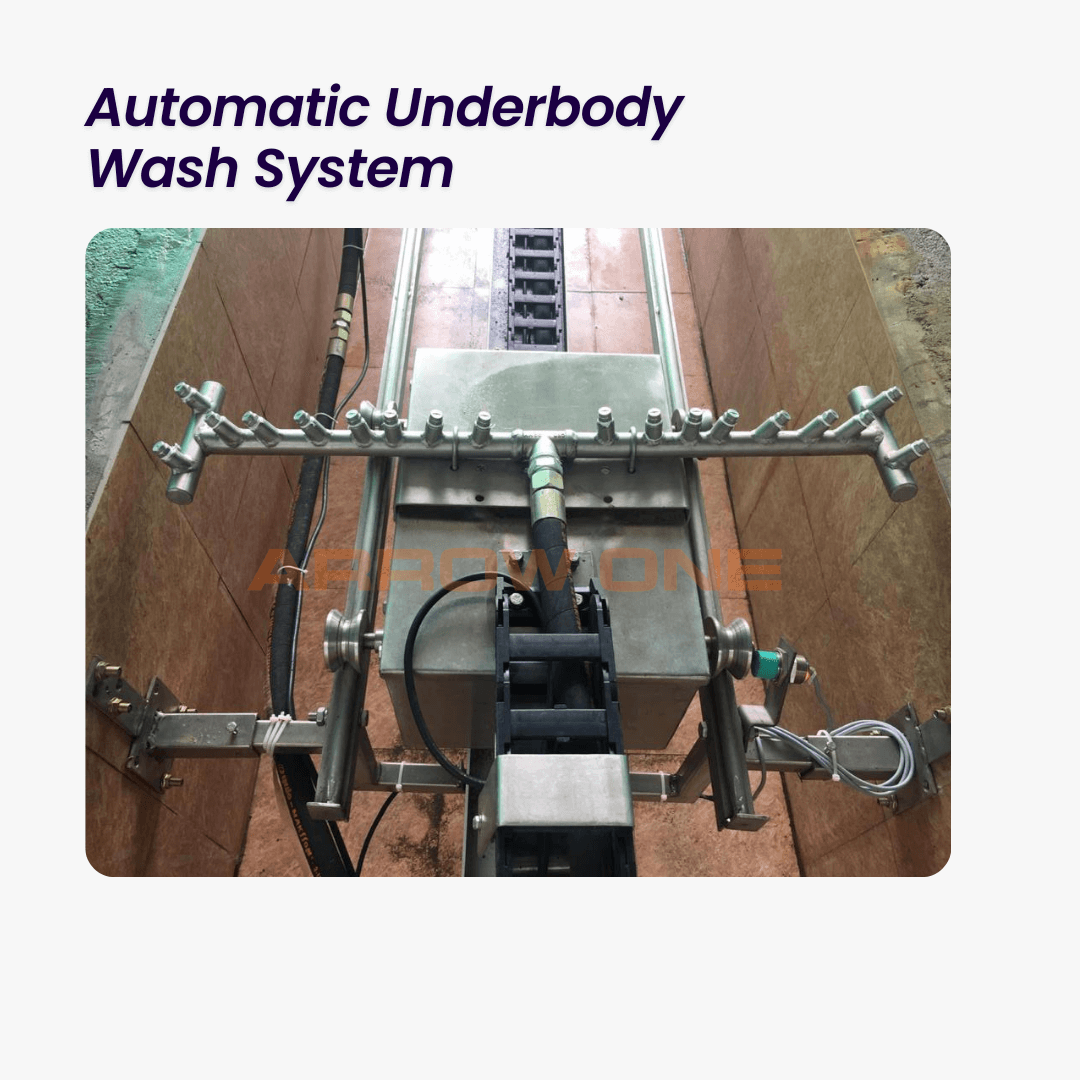

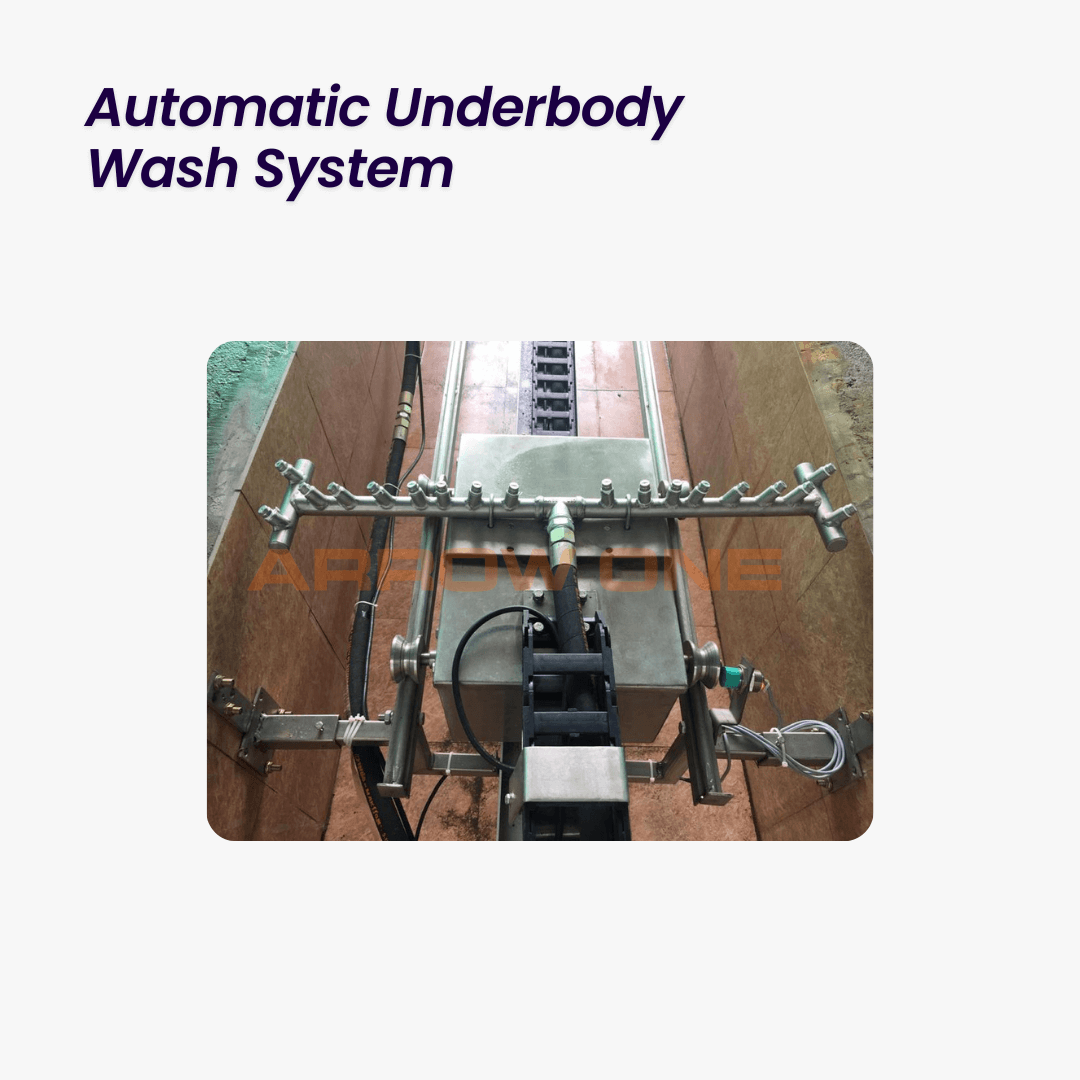

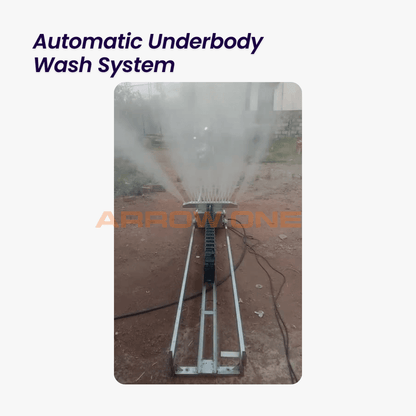

Automatic Underchassis Wash System
Automatic Underchassis Wash System
Note: Completely customisable as per customer requirement.
For best price connect with us
Product Features:
-
Efficient Cleaning : The high-pressure system ensures thorough cleaning of the underbody, removing dirt, mud, and other contaminants effectively.
-
Time and Cost Savings : With a quick cycle time and reduced manpower requirements, operational costs are minimized.
- Water Conservation: The system's design allows for automatic car length sensing, optimizing water usage based on the vehicle size.
-
Increased Productivity : The system's efficiency leads to higher throughput, making it suitable for high-traffic service centers.
-
Reciprocating high-pressure pump.
- High-pressure nozzles.
- Automatic foam spraying.
- Uniform water spraying for body wash.
- Digital counter to track the number of cars washed per day.
Product Specification Data :
| Parameter | Specification |
|---|---|
| Pit Dimensions | 5500 × 850 × 325 mm (L × W × H) |
| Number of Nozzles | 15 high-pressure nozzles |
| Operating Pressure | 100 bar |
| Water Consumption | 45–55 litres per vehicle (depending on car length) |
| Cycle Time | Approximately 40 seconds (excluding wheel arch cleaning) |
| Power Supply | 3-phase, 415 V, 50 Hz |
| Connected Load | 15 HP |
| Power Consumption per Car | 0.12 units |
